How to Fix Secant Pile Leaks in Coastal Excavations with High-Pressure Injection Waterproofing

Secant pile leaks are one of the most common and disruptive issues in coastal excavation waterproofing—especially along waterfronts, rivers, and areas with shallow water tables. These leaks in secant pile walls often occur at joints, where groundwater penetrates under pressure, risking excavation collapse and costly delays.

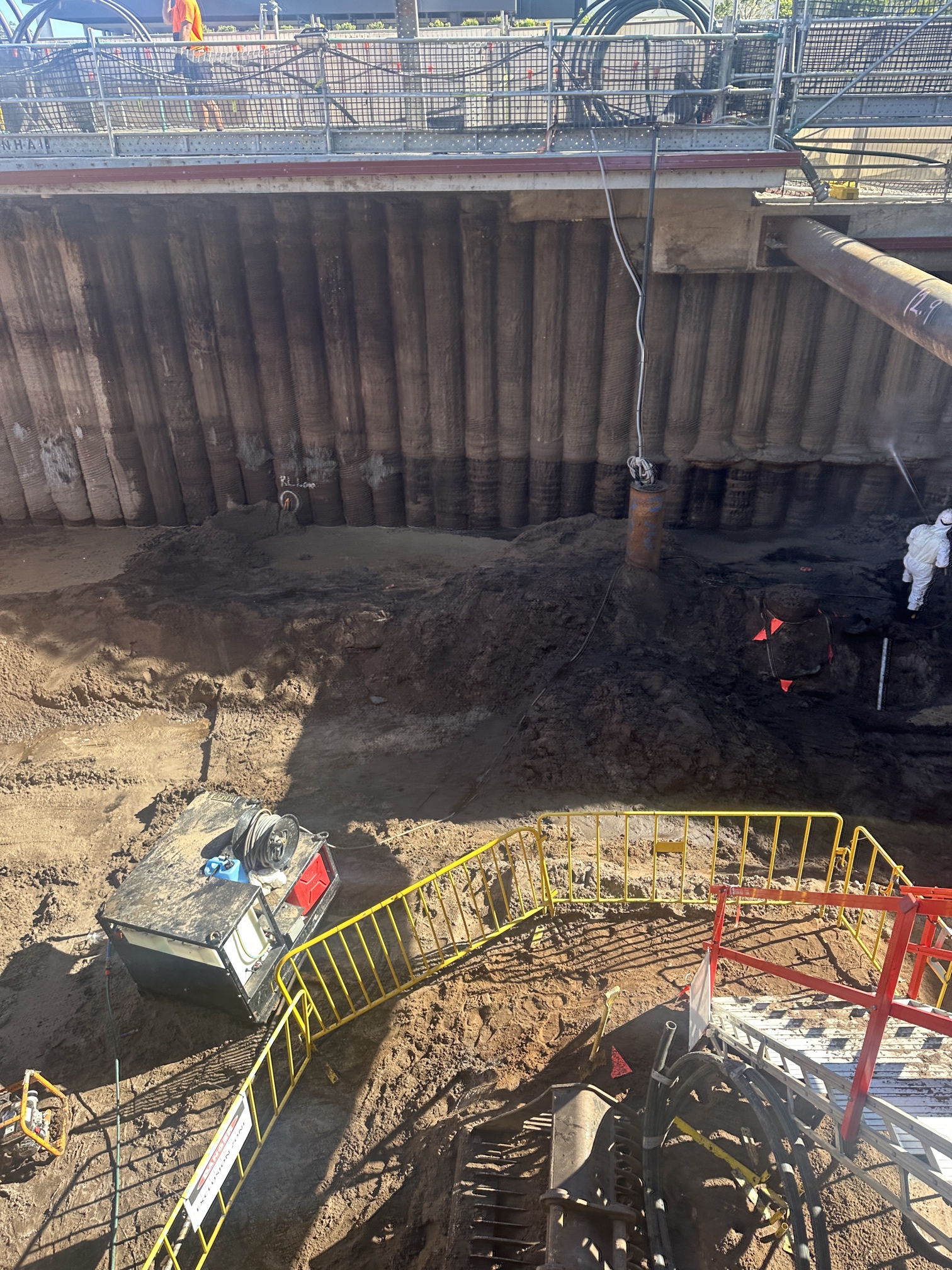

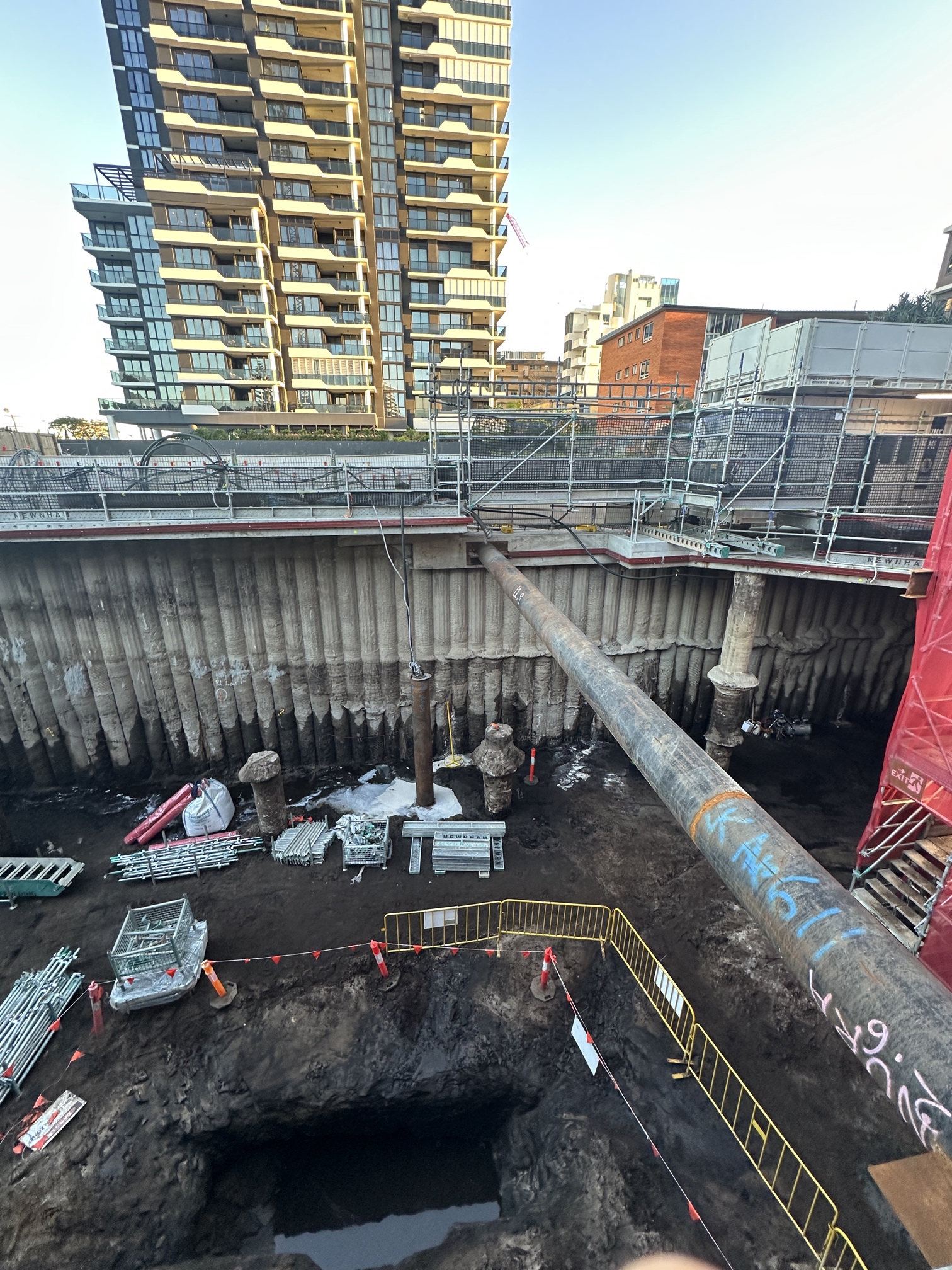

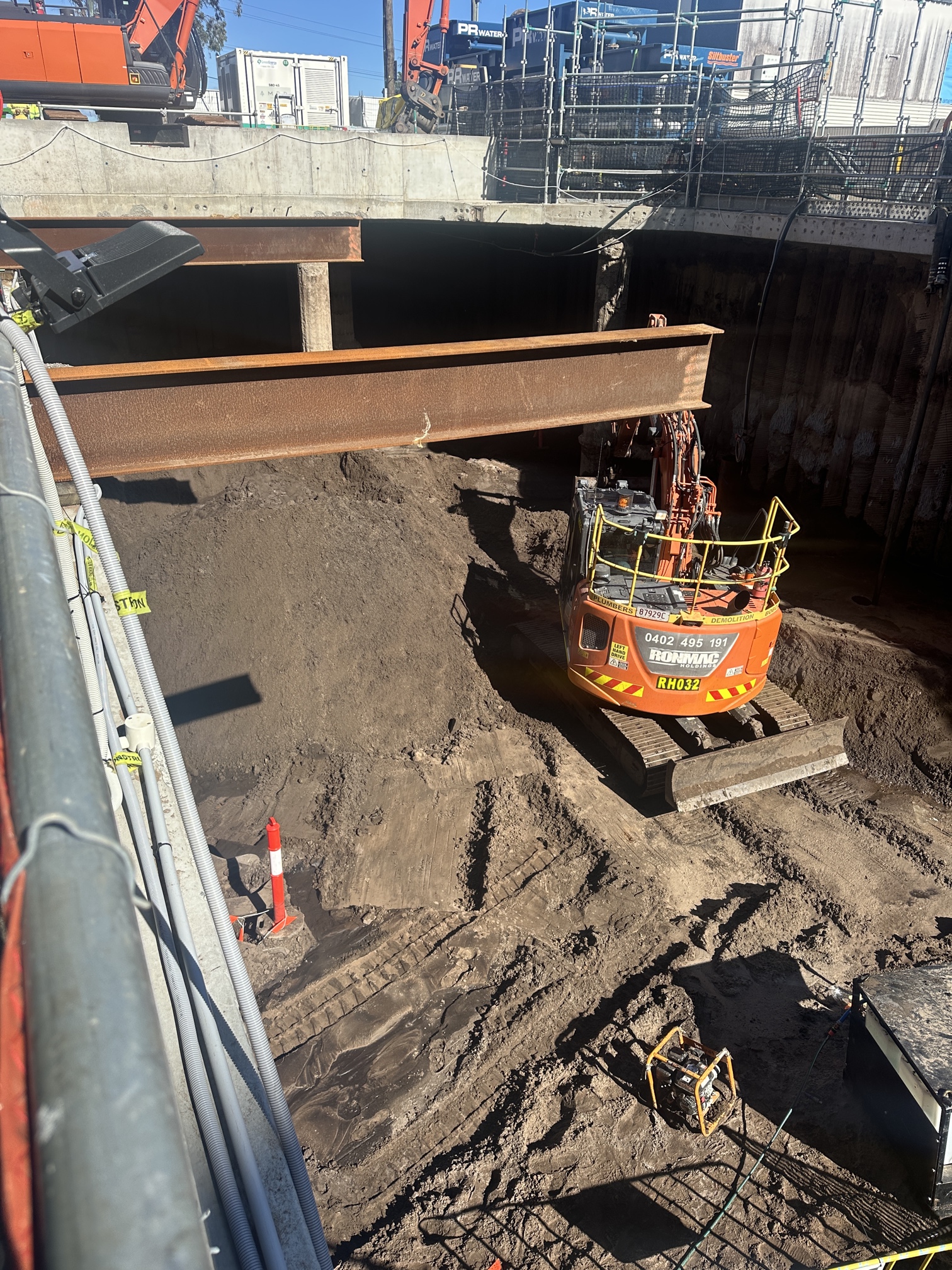

At Stop & Seal, we specialise in sealing secant pile leaks quickly and effectively. A recent project on the Gold Coast Highway in Burleigh Heads involved active water ingress through a leaking secant pile wall, threatening the stability of a deep commercial excavation.

Using our SNSeal high-pressure injection waterproofing system, we successfully sealed the secant pile joints, stopping the leak at its source. This non-invasive waterproofing method is trusted nationwide for solving leaks in secant pile walls in high-risk, water-logged environments.

Why Do Secant Piles Leak in Coastal Excavations?

In coastal regions like Burleigh Heads, it’s not unusual to hit groundwater early in an excavation. With sandy, porous soils and a naturally high water table, coastal construction faces more water pressure than inland sites.

Secant piles are designed to retain soil and limit water flow, but they’re not completely watertight — especially where two piles join. Over time, or even during excavation, water can begin to leak through the joints or gaps, often carrying soil or debris with it.

If left untreated, these leaks can cause:

• Project delays
• Increased construction costs
• Potential collapse or excavation failure

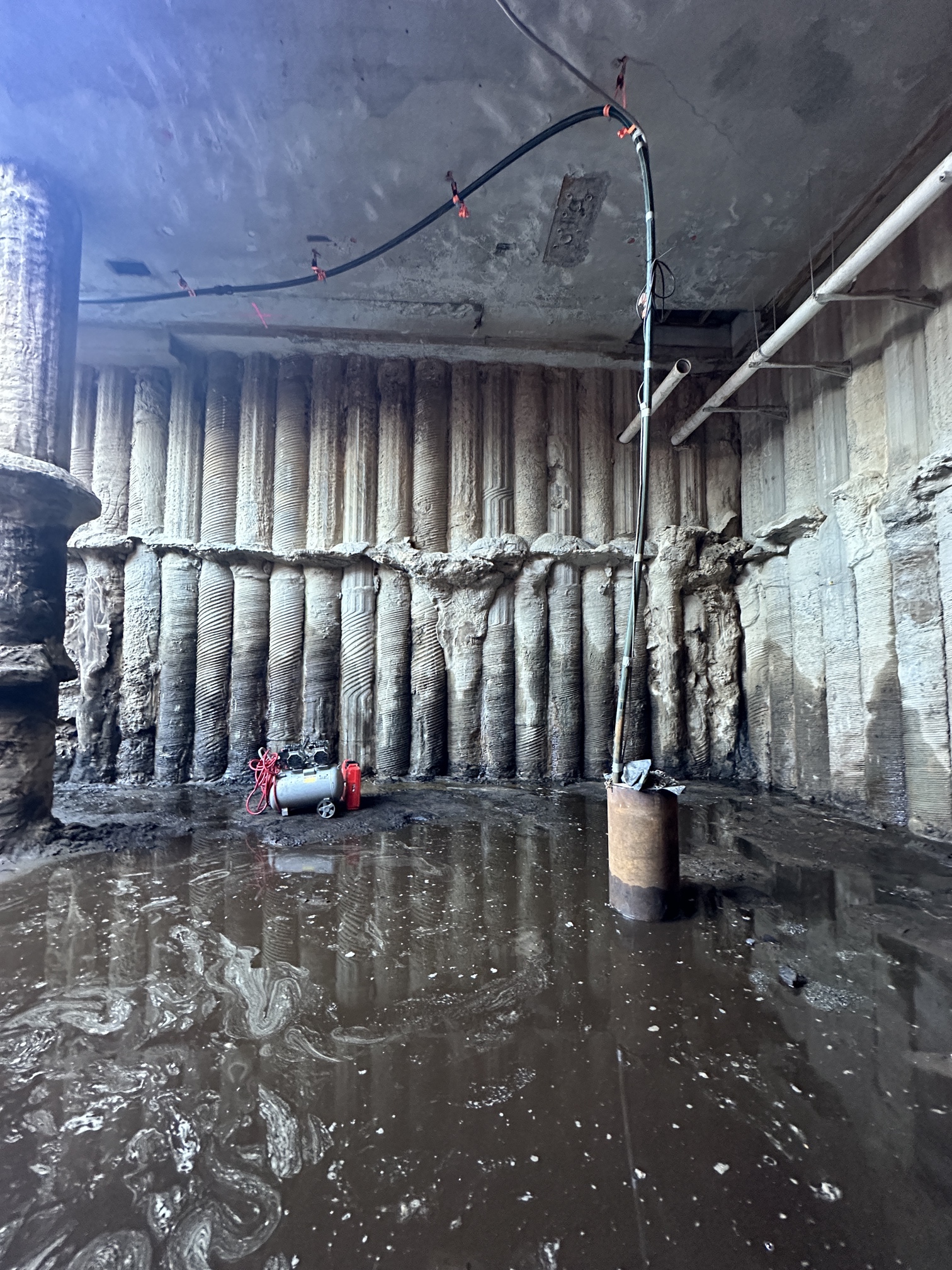

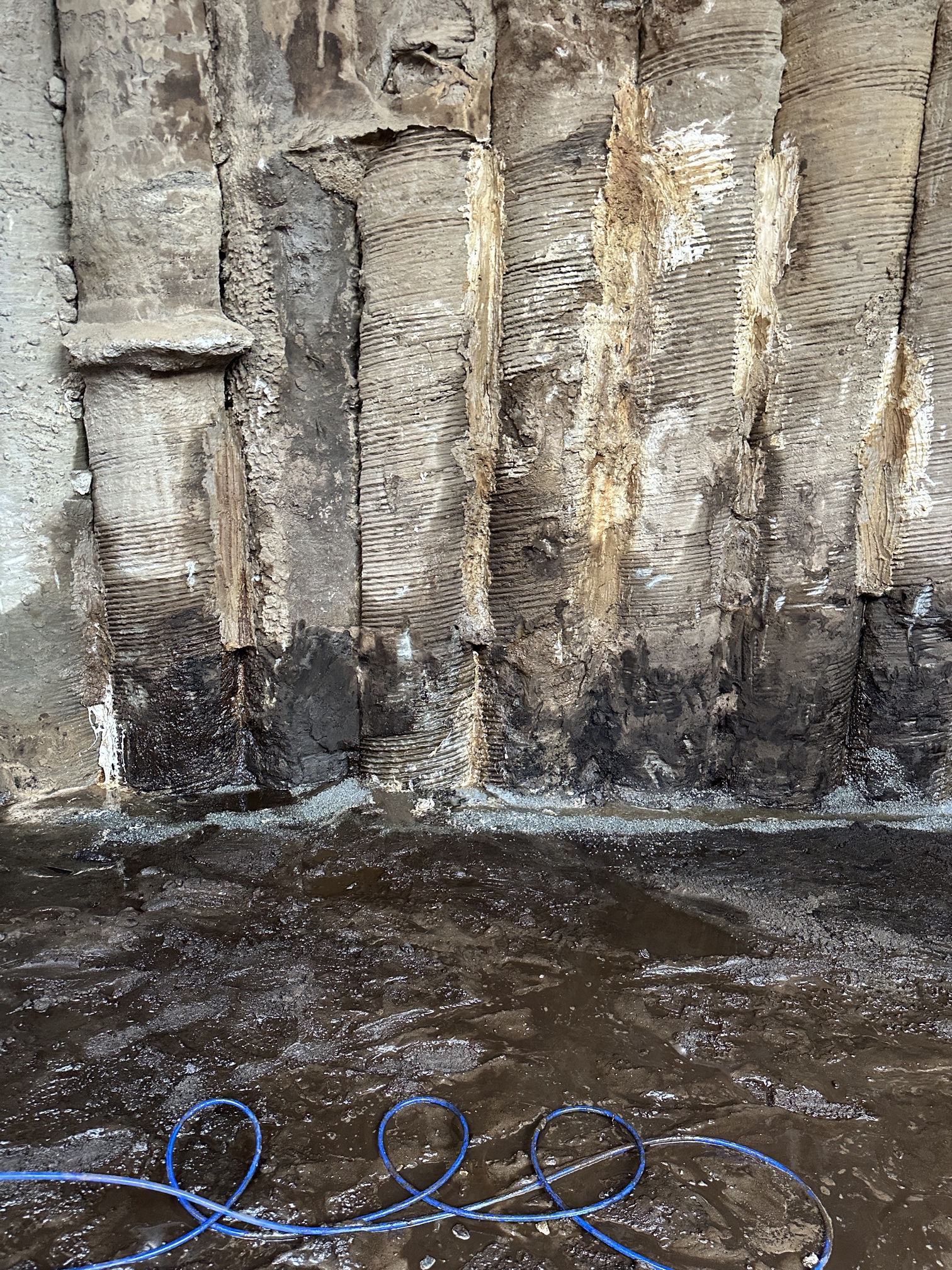

In our recent project, active leaks were occurring between secant piles, allowing both water and material to leak into the excavation. This required immediate action to seal the leaks and stabilise the site.

Our Waterproofing Solution:

SNSeal High-Pressure Injection

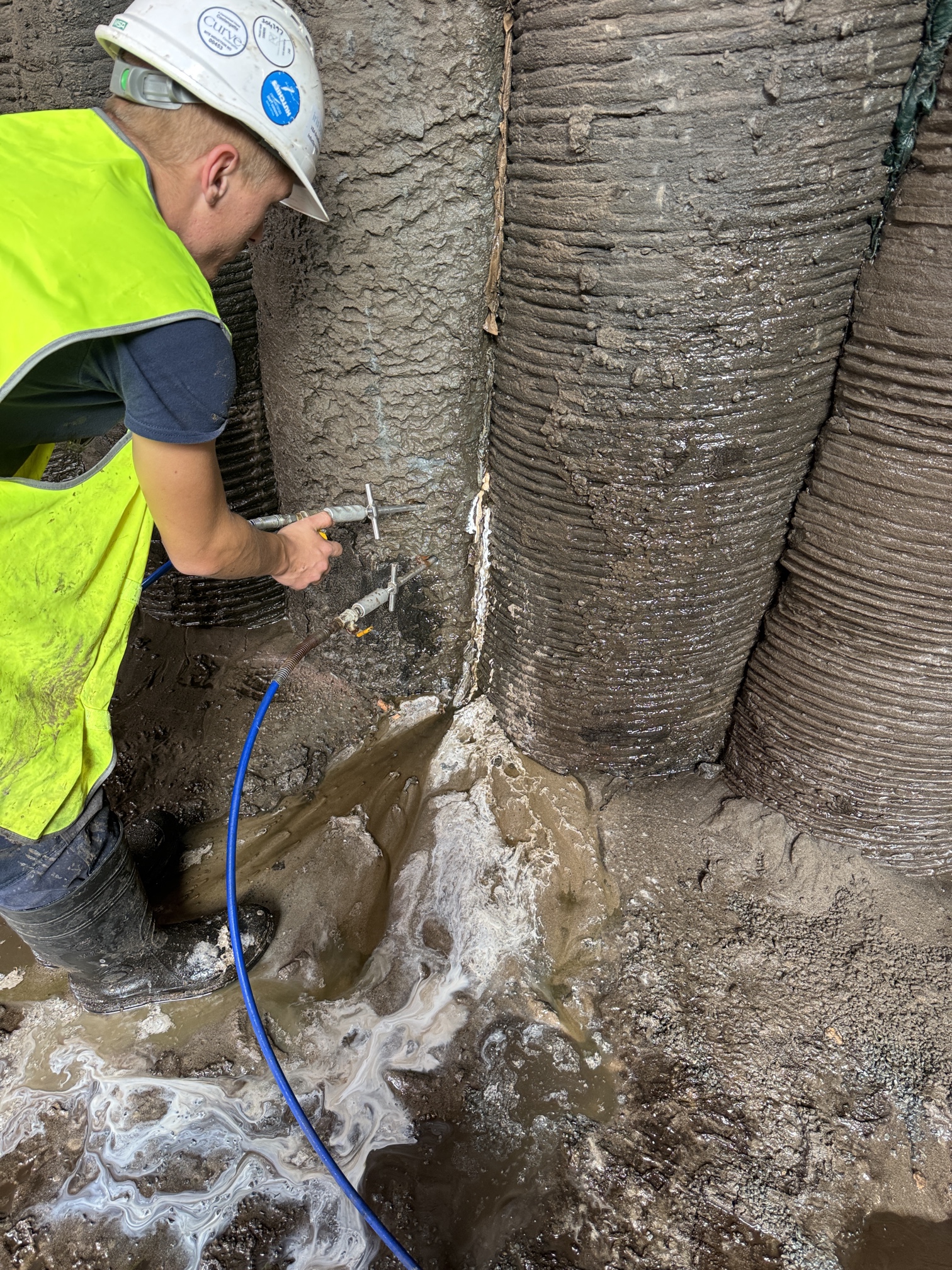

To stop the leaks and protect the excavation, we used our SNSeal high-pressure injection system — a proven method for sealing active water ingress without structural changes or demolition.

The SNSeal Injectable Sealant creates a watertight, flexible barrier that conforms to irregular voids and cracks between the piles. It cures quickly and doesn’t rely on dry conditions to be effective — making it perfect for coastal and live excavation sites.

Why Builders Choose Stop & Seal?

This wasn’t a one-off issue. Leaking secant piles are something we manage across Australia from Queensland to New South Wales to Victoria.

Builders and developers trust us because we offer:

• Fast response times
• Non-invasive repair solutions
• Long-term protection against water ingress

Whether it’s a basement, a retaining wall, or an active dig, our patented and exclusive injection systems provide reliable, site-safe sealing — even in high-pressure, high-water-table environments.
